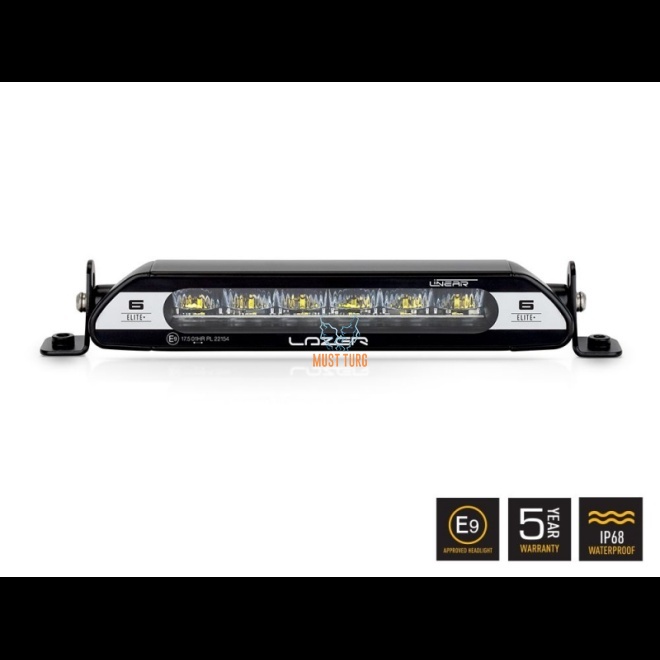

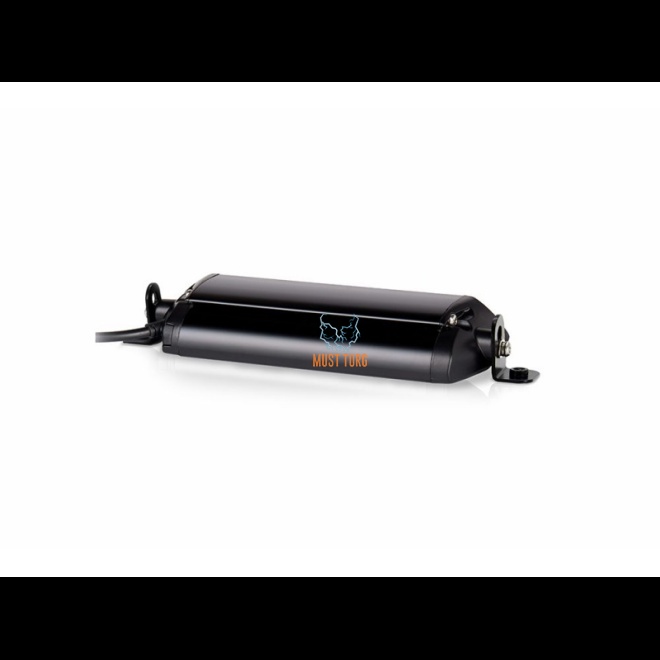

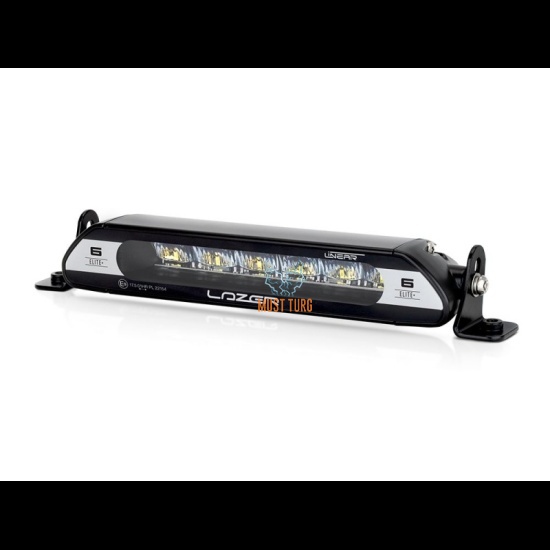

Lazer Linear 6 Elite + 69W 7100lm Ref.17.5 ECE R149

Brand: LAZER
Unit: psc
Qty: Partner in stock. Delivery 4-6 days

Delivery for 2-4 days in case of positive stock

ESTO järelmaks kuumaks al. 112,20 €
Price:
330,00 €
Kuumakse alates: 112,20 €
Qty.: - +
   - or -

Files

Video: https://youtu.be/bMKwiQeyV64
Based on: 1x Linear-6 Elite+ LED Lamp.

  White LED's
(E-Boost /
E-Mark Mode)		 Yellow LED's
(Fog / Dust / Snow Mode)		 White & Yellow LED's
(Combo Mode)
Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours
Weight 495 gr 495 gr 495 gr
HIGH BEAM FUNCTION
Total Luminous Flux 5100 / 2500 Lm 2000 Lm 7100 Lm
Total Driver 'FOV' Flux † 3645 / 1822 Lm 1200 Lm 4774 Lm
Colour Temperature 5000K PC Yellow N/A
Number of High Output LEDs 12 6 12 White /
6 Yellow
Power Consumption 48 W / 24 W 21 W 69 W
Current Draw 3.6 A / 1.8 A 1.5 A 5.1 A
Peak Current Draw 4.9 A / 2.5 A 2 A 6.9 A
CERTIFICATION
High Beam ECE R149 N/A
ECE Reference 12.5

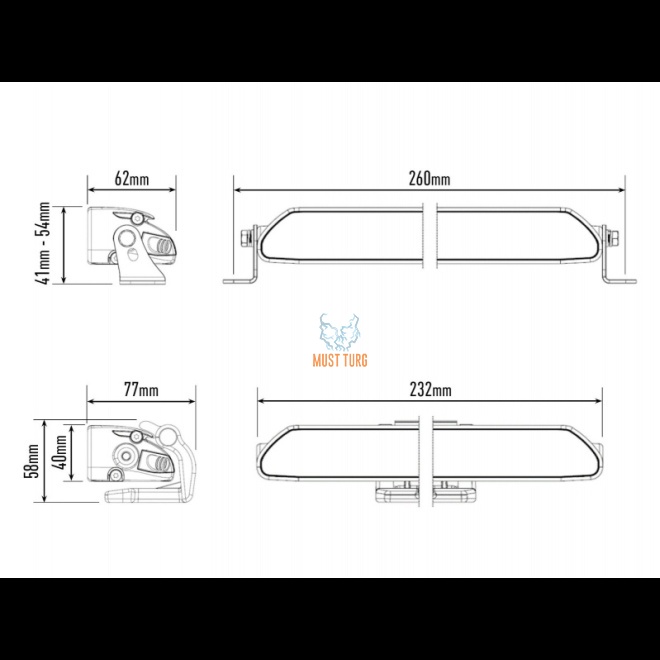

DIMENSIONS
Width 232 mm 232 mm 232 mm
Depth 62 mm 62 mm 62 mm
Height 40 mm 40 mm 40 mm

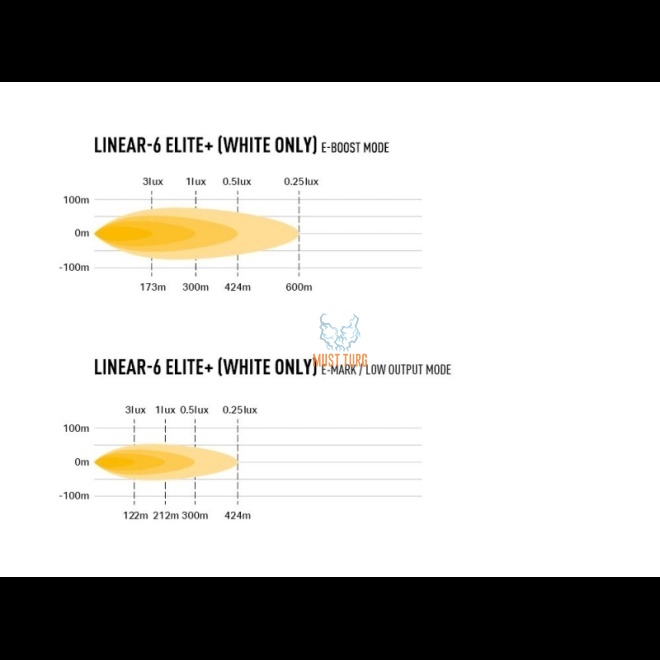

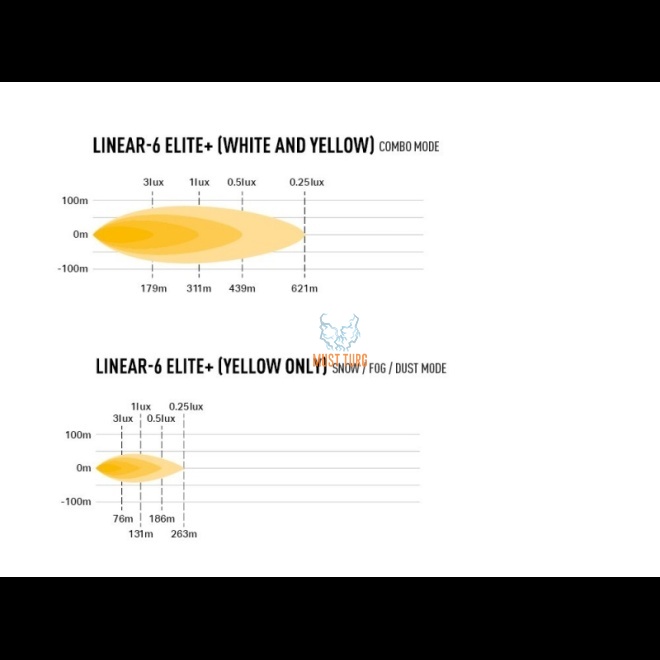

PHOTOMETRIC DATA

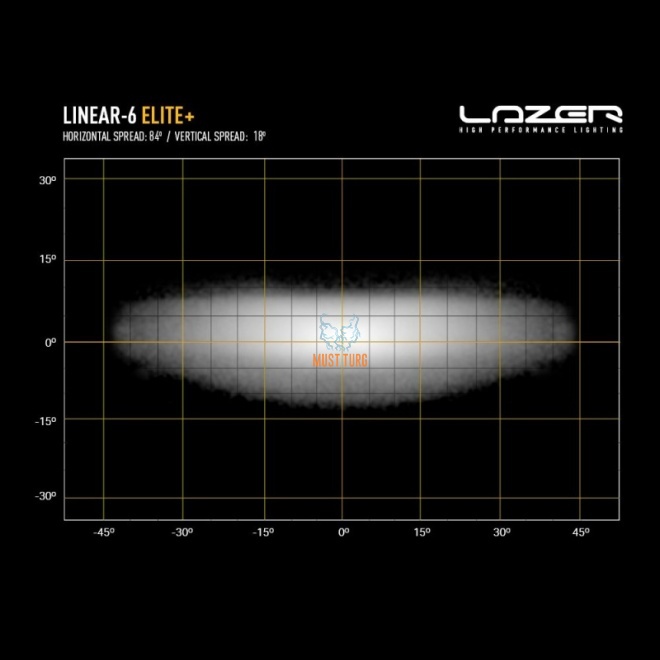

Horizontal Beam Angle 84o 84o 84o
0.25 lx Line 600m / 424m 263m 621m
0.5 lx Line 424m / 300m 186m 439m
1 lx Line 300m / 212m 131m 311m
3 lx Line 173m / 122m 76m 179m
