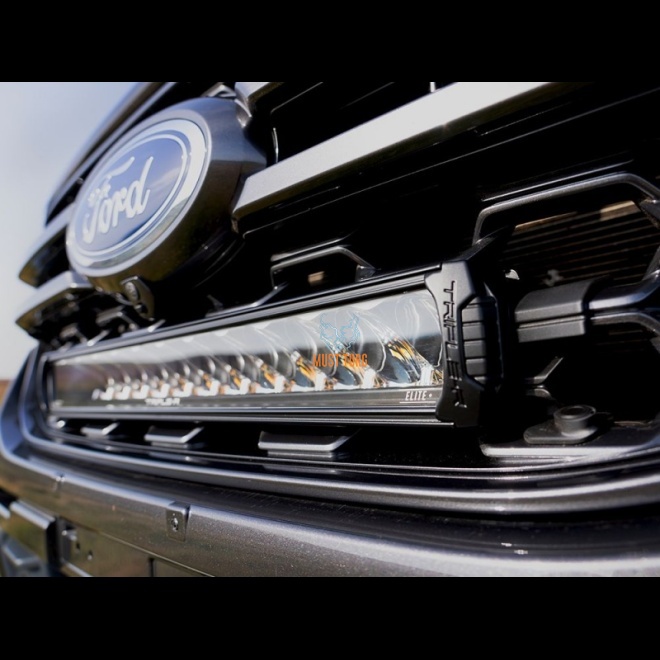

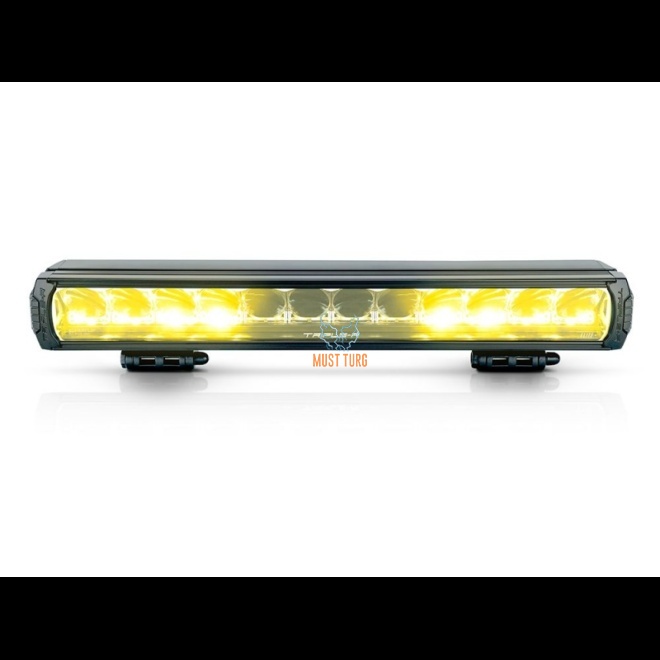

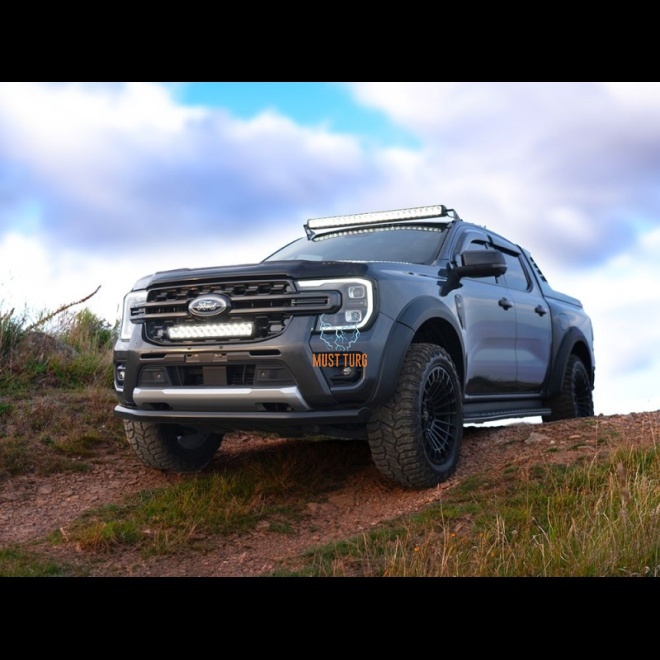

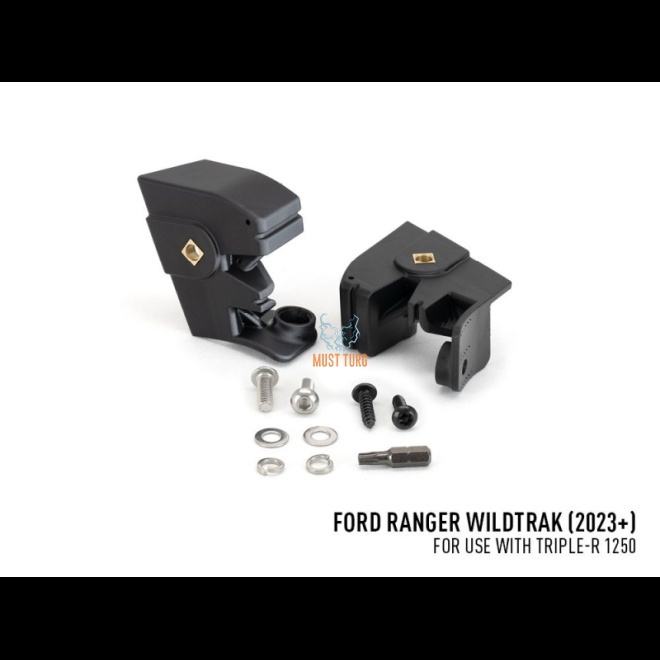

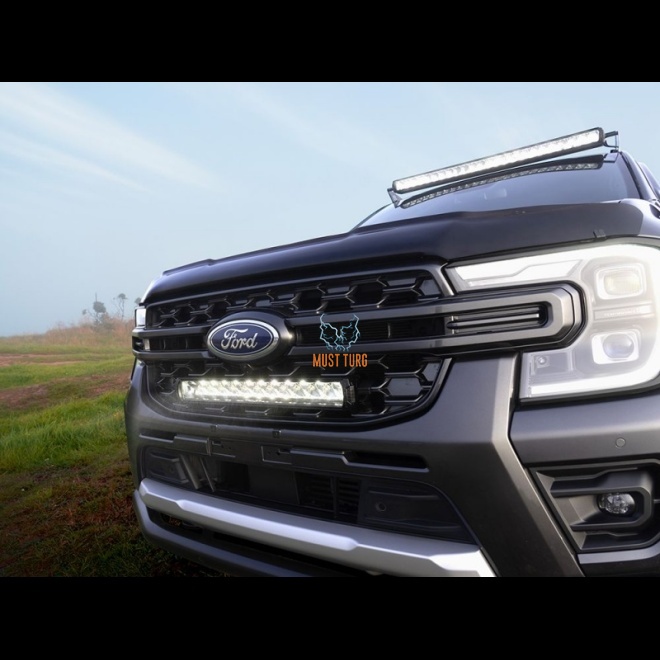

High beam kit Ford Ranger Limited 2023- Lazer Triple-R 1250 Elite+

Brand:
Unit: set
Qty: Partner in stock. Delivery 4-6 days

Delivery for 2-4 days in case of positive stock

Maksa osadena kuumaks al. 315,08 €
Price:
945,25 €
Qty.: - +
   - or -

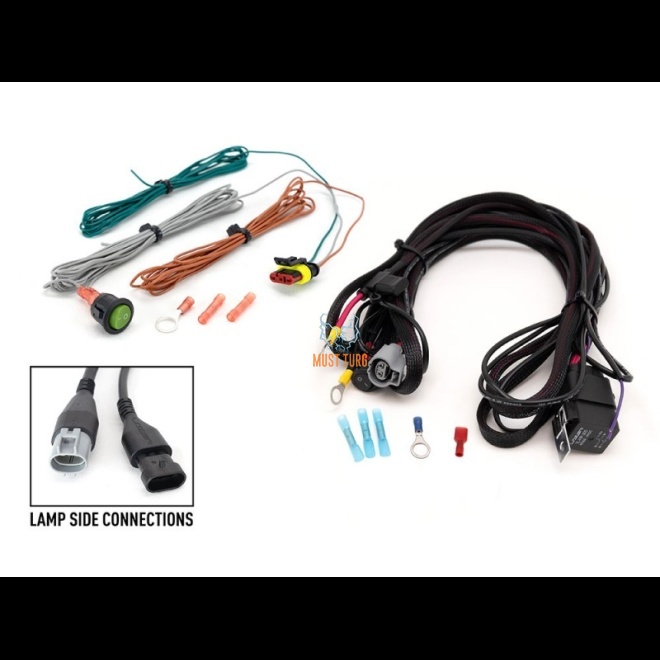

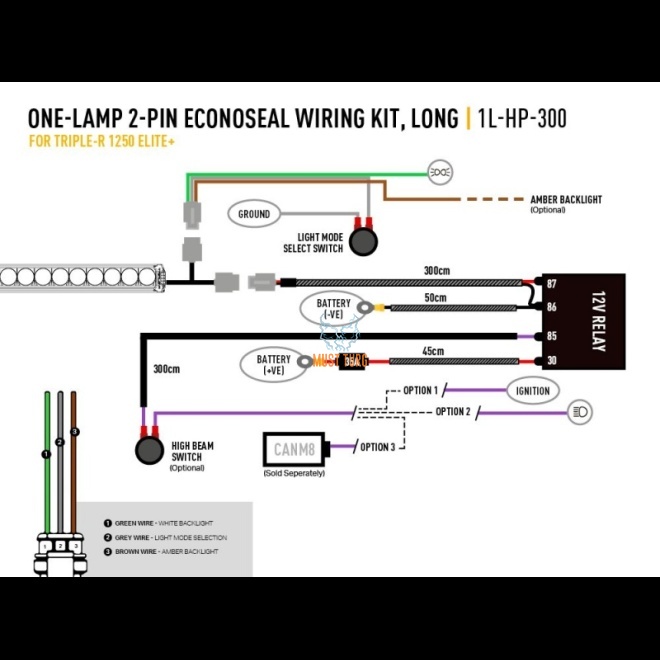

Juhtmesari komplektis
Video: https://youtu.be/r89nURJxf2Y

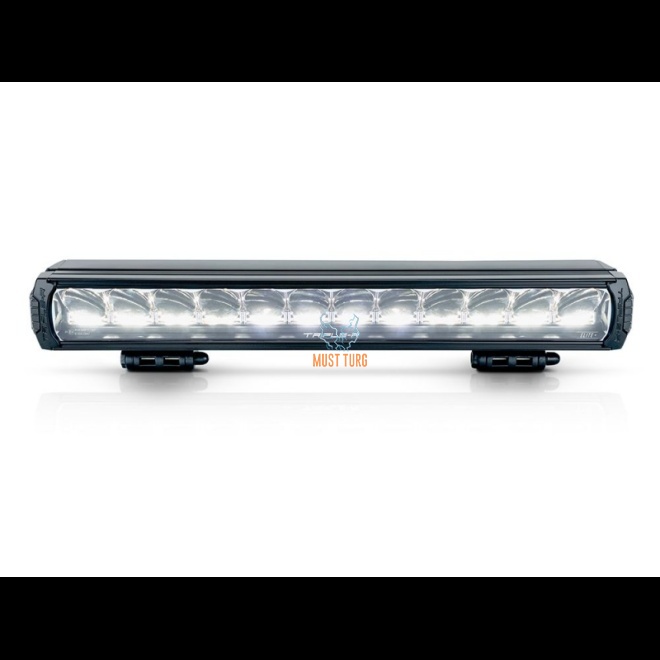

Based on: 1x Linear-18 Elite+ LED Lamp.

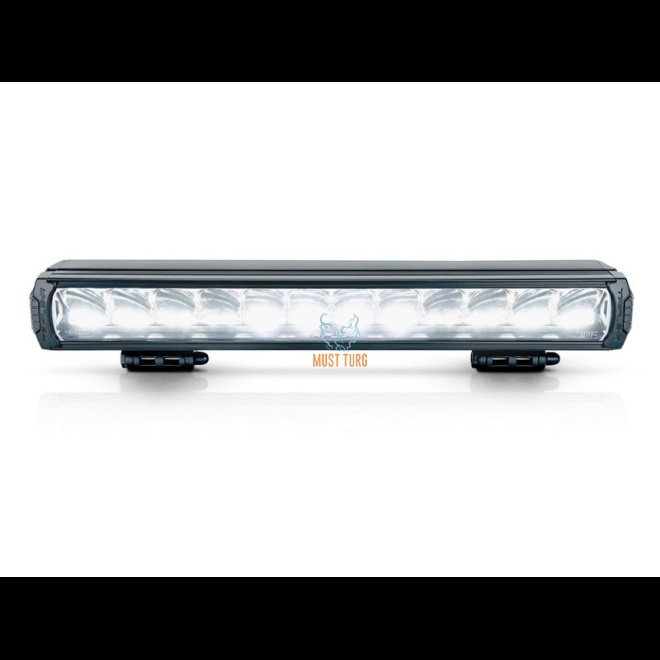

  White LED's
(E-Boost /
E-Mark Mode)		 Yellow LED's

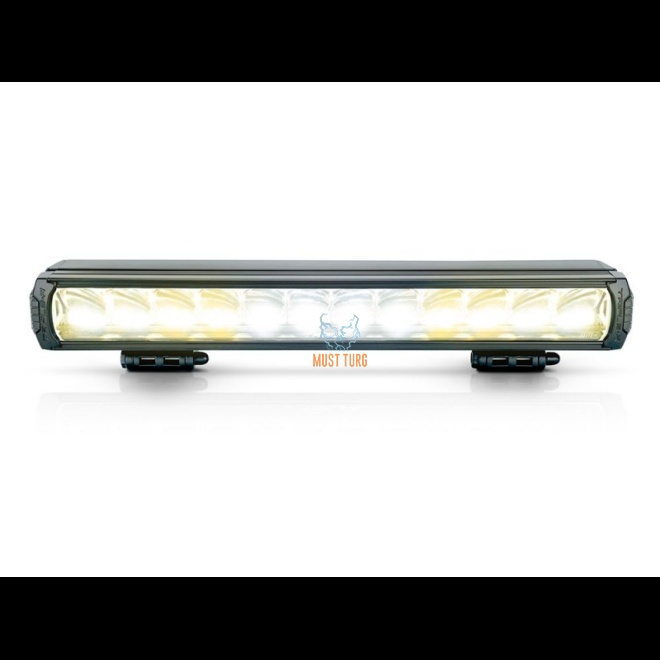

(Fog / Dust / Snow Mode)		 White & Yellow LED's
(Combo Mode)
Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours
Weight 2400 gr 2400 gr 2400 gr
HIGH BEAM FUNCTION
Total Luminous Flux 12028 / 2045 Lm 9360 Lm 21388 Lm
Total Driver 'FOV' Flux † 7464 / 1269 Lm 5273 Lm 12737 Lm
Colour Temperature 5000K PC Yellow N/A
Number of High Output LEDs 24 20 24 White /
20 Yellow
Power Consumption 131W / 19.6 W 92 W 243 W
Current Draw 9.1A / 1.4 A 6.4 A 16.9 A
Peak Current Draw 12A / 1.8 A 8.5 A 22.8 A

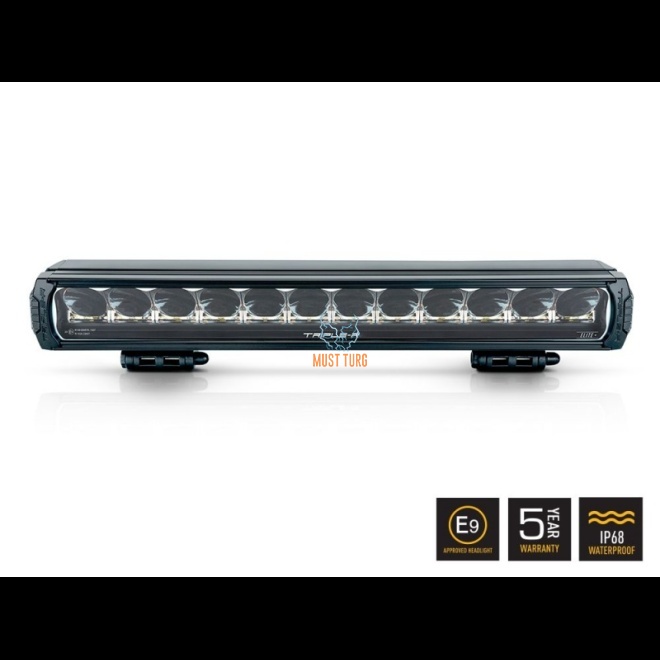

CERTIFICATION
High Beam ECE R149 N/A
ECE Reference 20
DIMENSIONS
Width 590 mm 590 mm 590 mm
Depth 105 mm 105 mm 105 mm
Height 73 mm 73 mm 73 mm

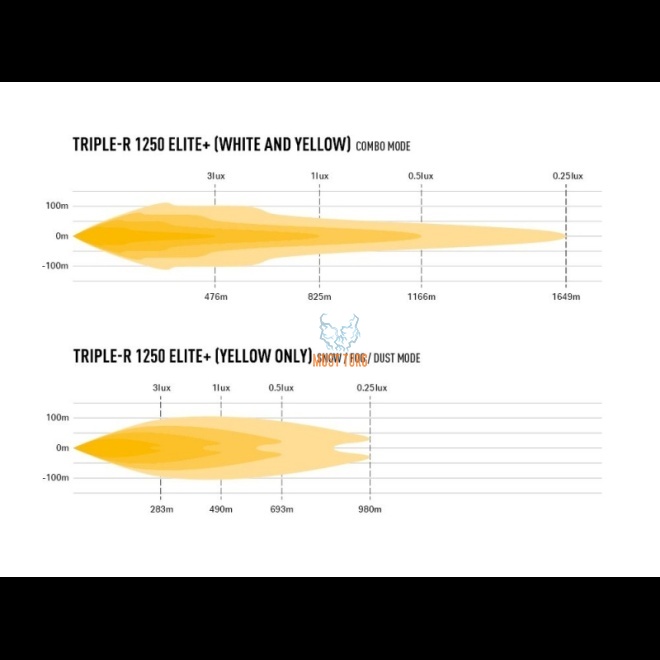

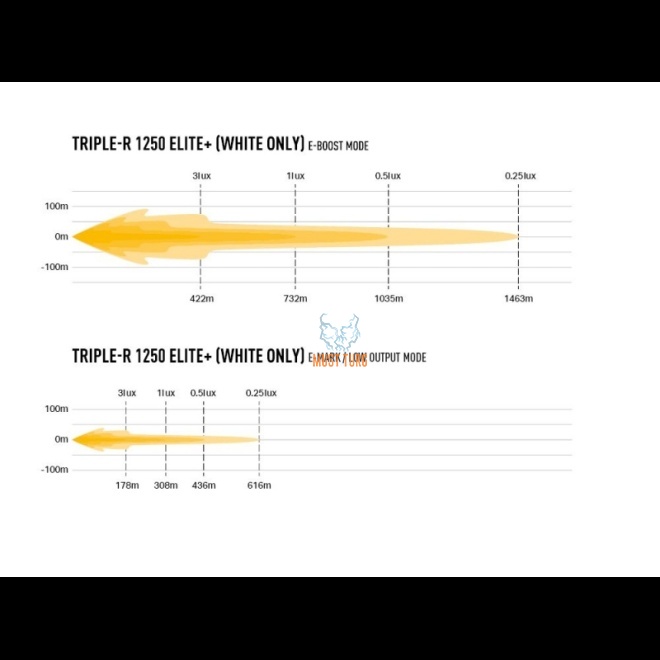

PHOTOMETRIC DATA
Horizontal Beam Angle 54o 54o 54o
0.25 lx Line 1470m / 694m 980m 1649m
0.5 lx Line 1039m / 436m 693m 1166m
1 lx Line 735m / 308m 490m 825m
3 lx Line 424m / 178m 283m 476m
